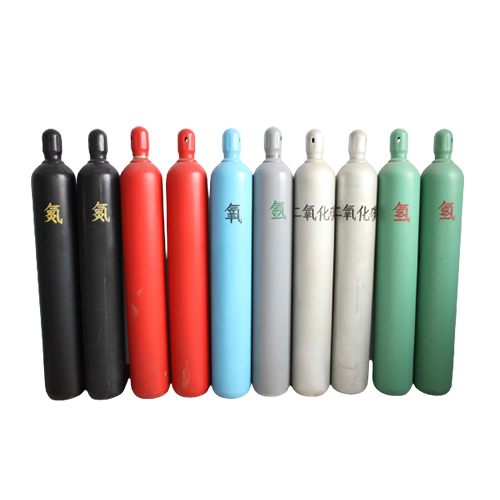

ISO9809 Seamless Steel Cylinder

Standard: ISO9809

Outer Diameter (mm): 203/219/232/279/356/406mm

Water Capacity (L): 18– 190L

24 months warranty

Inquire Now

Specification Table for ISO9809 Seamless Steel Gas Cylinder

A seamless steel cylinder is a type of cylinder that is made from a single piece of steel, without any seams or welds. It is typically used to store and transport gases or liquids under high pressure. Seamless steel cylinders are stronger and more durable than cylinders that are made with welded seams, as they do not have the potential for weak points or leaks at the welds.

Application of Seamless Steel Cylinder

Seamless steel cylinders are commonly used in a variety of applications, including in the medical, industrial, and recreational industries. They are often used to store and transport gases such as oxygen, nitrogen, and argon, as well as liquids such as water, fuel, and chemicals.

There are several advantages to using seamless steel cylinders. They are highly durable and can withstand high pressure, making them suitable for use in a wide range of applications. They are also resistant to corrosion and can be used in a variety of environments. Additionally, seamless steel cylinders are typically lighter and more compact than other types of cylinders, making them easier to transport and handle.

Contact us.

Specification Table of Seamless Cylinder

Model	Capacity(L)	Height(mm)	Weight(kg)	Work Pressure(MPa)	Design Thickness(mm)	Material
WGII203-18-20A	18	753	21	20	4.8	34CrMo4
WGII203-20-20A	20	822	23	20	4.8
WGII203-22-20A	22	891	25	20	4.8
WGII203-23.6-20A	23.6	946	26	20	4.8
CNP25-50-279A	50	1064	62	25	8.2	34CrMo4
CNP25-60-279A	60	1276	74	25	8.2
CNP25-70-279A	70	1488	86	25	8.2
CNP25-80-279A	80	1700	98	25	8.2
CNP25-90-279A	90	1912	110	25	8.2
CNP25-90-356A	90	1225	130.5	25	10.7	34CrMo4
CNP25-100-356A	100	1344	142	25	10.7
CNP25-120-356A	120	1579	166	25	10.7
CNP25-125-356A	125	1636	172	25	10.7
CNP25-140-356A	140	1814	190	25	10.7
CNP25-160-356A	160	2049	214	25	10.7
CNP25-167-356A	167	2131	223	25	10.7
WGS356-100-25	100	1329	120	25	10.2	34CrMo4
WGS356-120-25	120	1558	140	25	10.2
WGS356-125-25	125	1615	145	25	10.2
WGS356-150-25	150	1901	170	25	10.2
WGS356-160-25	160	2015	180	25	10.2
WGS356-167-25	167	2095	187	25	10.2
WGS356-190-25	190	2358	210	25	10.2
WMA219-25-15	25	885	32.3	15	5.7	37Mn
WMA219-36-15	36	1210	42.5	15	5.7
WMA219-38-15	38	1270	44.4	15	5.7
WMA219-40-15	40	1330	46.3	15	5.7
WMA219-45-15	45	1480	51.1	15	5.7
WMA219-47-15	47	1540	52.9	15	5.7
WMA219-50-15	50	1630	55.8	15	5.7
WZA232-35-15	35	1050	38.5	15	5.4
WZA232-38-15	38	1130	41.1	15	5.4
WZA232-40-15	40	1190	43.1	15	5.4
WZA232-43-15	43	1260	45.3	15	5.4
WZA232-45-15	45	1310	46.9	15	5.4
WZA232-47-15	47	1360	48.5	15	5.4
WZA232-50-15	50	1440	51.1	15	5.4
WGA232-33.5-20	33.5	988	43.1	20	5.6	34CrMo4
WGA232-40-20	40	1159	48.9	20	5.6
WGA232-45-20	45	1291	53.5	20	5.6
WGA232-46-20	46	1317	54.6	20	5.6
WGA232-46.9-20	46.9	1341	55.6	20	5.6
WGA232-48-20	48	1370	57.1	20	5.6
WGA232-50-20	50	1423	59.3	20	5.6

Seamless Steel Cylinder production process

Material

Cutting

Bottom Forming

Neck Forming

Tempering

Outside Shot Blasting

Inner Surface Blasting

Thread Maching

Leakage Test

Painting

FAQ

Q: Are you manufacturer or trade company?

A: We are a Chinese manufacturer, and have been specializing in manufacturing gas cylinders for more than 10 years.
Q: Can you offer free samples for inspection?

A: Sure. We can help to supply 1-2 pieces free sample for testing by charging freight and we would return the full refund once we received formal order.
Q: What is your normally payment terms?

A: T/T and L/C are all accepted.
Q: How about the quality guarantee?

A: We allow 3rd party inspections before shipment (on buyer's account) And we can supply certificate of quality accordingly.
Q: How long is your warranty?

A: The products carry 24 months warranty
